Mastering Mobile Phone Repairs with MaAnt Maintenance Assistant

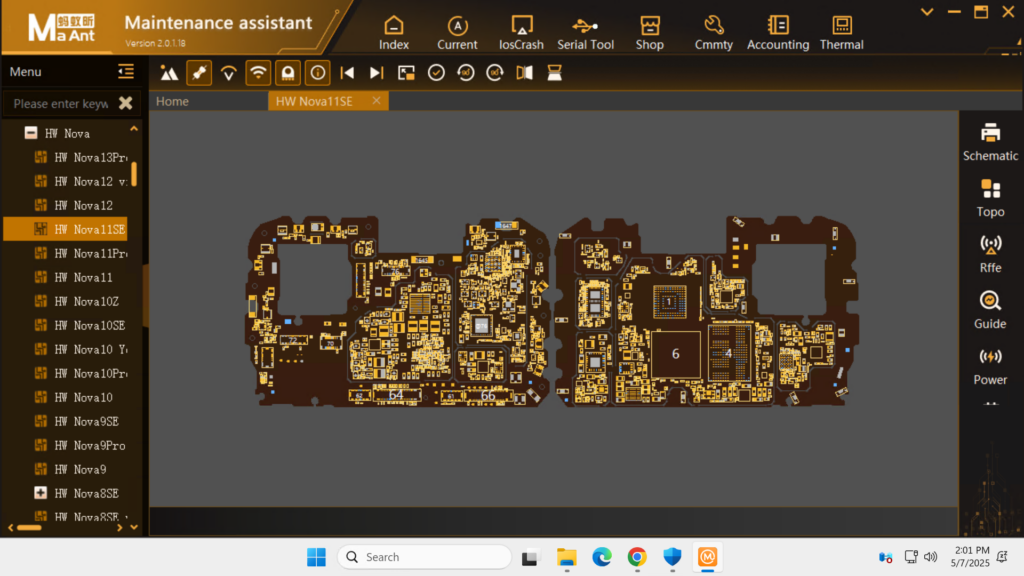

The MaAnt Maintenance Assistant welcome & board‐view screen
Introduction
MaAnt Maintenance Assistant is an all-in-one software suite for mobile technicians, offering:
Repair Drawings & Schematics – Visual board layouts to locate components quickly (Alibaba)
Object Observation – Zoom, pan, and inspect solder points and test pads (Martview)
Current Storage Analysis – Capture and review live current‐voltage data for diagnostics (Alibaba)
Whether you’re tackling display issues, boot loops, or power management faults, MaAnt streamlines your workflow.
Key Modules & Workflow
Register & Login
Launch the MaAnt client.

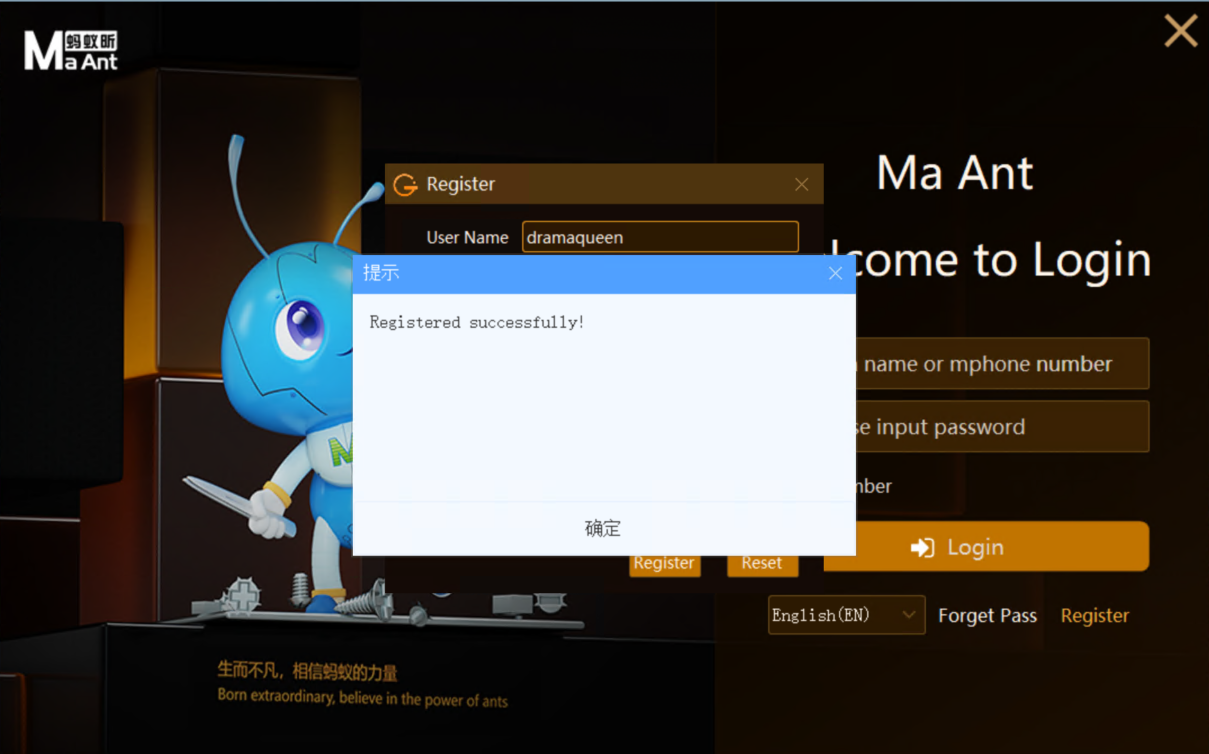

Click Register, choose a username (e.g., “dramaqueen”), set a secure password, and confirm.
Upon success, you’ll see a confirmation popup:
“Registered successfully!”
(Click “确定” to proceed.)
Model Selection
From the Menu pane on the left, navigate to your device family (e.g., HW Nova → HW Nova11SE).
Click the model entry to load its board layout.
Board Layout & Schematics

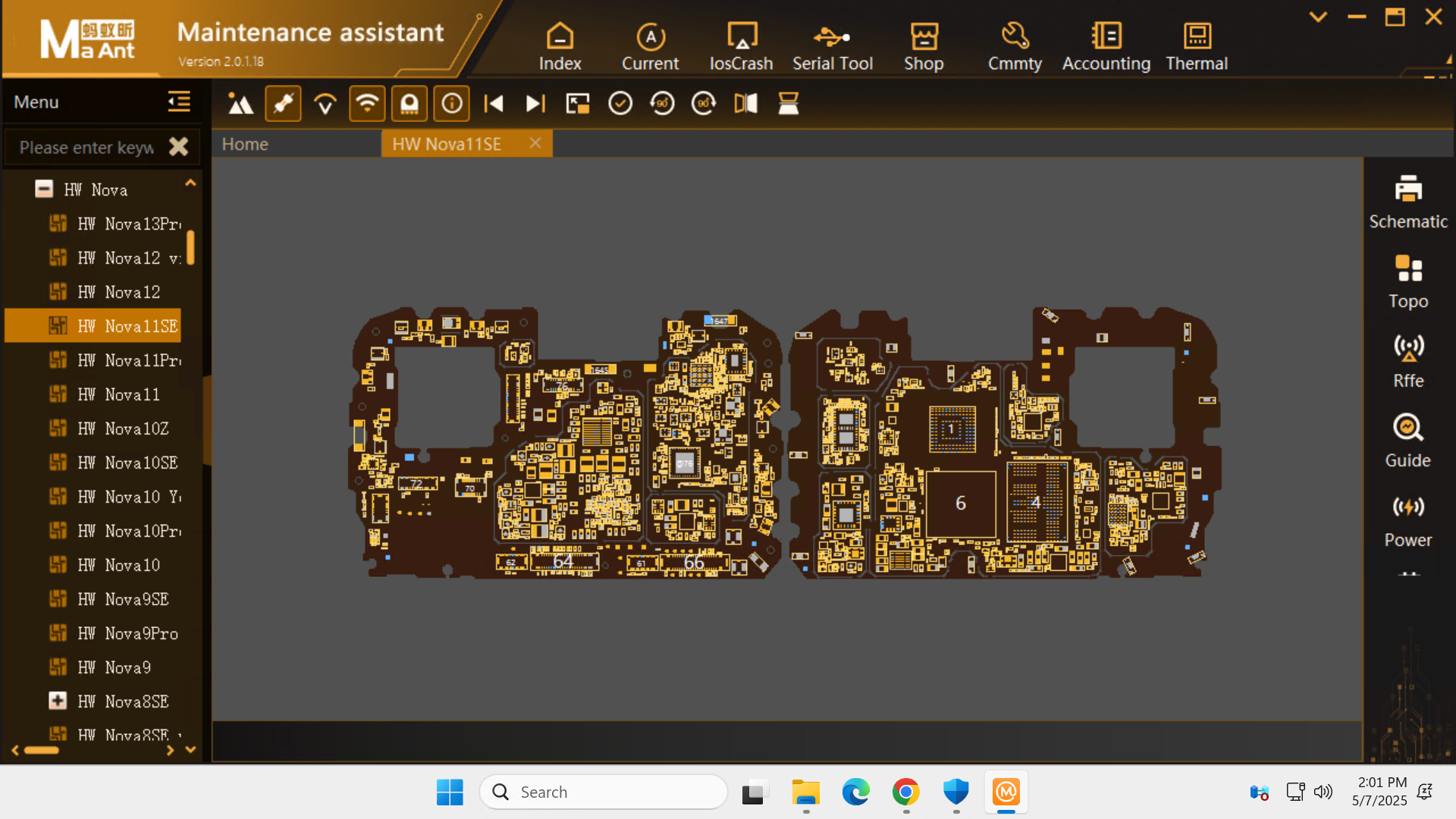

The central canvas displays the topology map—silkscreen outlines with numbered test points.
Use the Schematic, Topo, and Guide tabs (right sidebar) to switch between circuit diagrams and component reference designs.
Diagnostic Tools
Current Storage (losCrash): Record voltage/drain behavior under load.
Serial Tool: Interface with bootloader or system logs via UART.
Thermal: Monitor device temperature in real-time.
Power: Simulate battery insertion/removal to test charging circuits.
Repair Drawings & Object Observation
Click the Shop or Accounting icons to download high-resolution repair drawings from MaAnt’s cloud library.
Pan/zoom annotations highlight critical test points and component IDs. (Martview)
Use the Rffe module to inspect RF front-end network traces, ideal for antenna and signal-path troubleshooting.
Logging & Reporting
After each repair step, annotate the board view with notes.
Export detailed reports (PDF/CSV) of test results and firmware versions for customer records.
Best Practices
Always register your copy to receive the latest update packs.
Reference repair drawings before desoldering—incorrect component removal can damage the PCB.
Use object observation to confirm solder-joint integrity under magnification.
Log all serial-tool outputs; bootloader errors often pinpoint corrupt partitions.
